Zhonghang WIFI LED driver multi programs indoor outdoor ZH-Wm P10 screen display controller card

FOB Reference Price:Get Latest Price
US $8.7-11.1 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Zhonghang
Model Number:
ZH-Wm
Usage:
indoor,outdoor and semi-outdoor
Tube Chip Color:
Single&Dual color
Display Function:
Graphic/Text/Animation
Pixels:
10mm
Screen Dimension:
32*512 16*1024
Communication Type:
WiFi or USB
Hub Port:
2 pics hub12, 1 pic hub08
Software Version:
LED Control System V3.56
WiFi Network:
automatically produce and search
Language:
multi-language
Antenna place:
outside
Maximum power:
≤3W
Working Voltage:
4.5V~6V
Maximum transmission distance:
200m
Sensor:
can connect 18b20 temperature sensor
Supply Ability
Supply Ability:
3000 Piece/Pieces per Week We have storage
Packaging & Delivery
Packaging Details
PVC bag and carton box
Port
Factory
Lead Time :
After payment

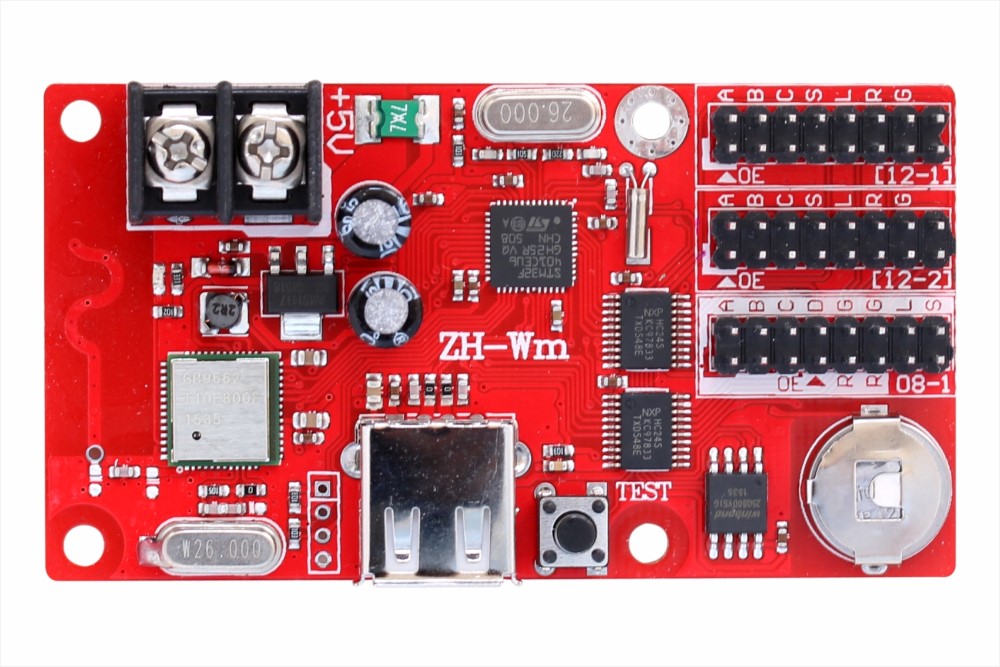

Product Description

.png

Product Specification:

Wm

Function advantages:

Truly free wiring; simple operation; without any subsequent cost; simple point to point communication; can automatically search WiFi network and establish reliable connection.

Data transmission:

1. In general, laptop can spread through the distance of 100 meters directly; desktop computer can communicate with wireless controller through the wireless network card.

2. Laptop can connect directly, control card owns router function; desktop can connect through the wireless net card.

3. Available in the area with WiFi coverage, such as airport, high-speed rail station, smart building, etc.

Technical parameters:

Main functions: data wireless transparent transmission; support 100M Ethernet net; support TCP/IP/UDP network protocol stack; support routing/bridge model network frame; support 802.11 b/g/n wireless standards.

Maximum power: 3W

distance suggestion: 100 meters)

Wireless standard: 802.11 b/g/n

Working voltage: +4.5V~6V

Working temperature: -30~70

Working frequency band: 2.412 GHz to 2.484 GHz

Configuration antenna: 2.4 GHz special inside-antenna

Maximum transmission distance: 200M (the actual application transmission

Receiving sensitivity: (802.11 b: - 89 DBM, 802.11 g: - 81 DBM, 802.11 n: - 71 DBM)

Application note:

1. The latest research products; compact structure; fine craft; concise installation;

2. Please use waterproof protection when you use it outdoors;

3. Pay attention to the placement of the antenna, the controller chip antenna should be placed outside.

Software:

You can download the software in our official website www.zhonghangled.com/en/. The download center has software and technical instruction.

System New

Our Services

Technical Support&Service:

Before-Sales Service:

You’d better contact me via Skype, Email, WhatsApp or Whatchat in advance and tell me what kinds of LED control cards you would like to use or sell. And then I will give you some recommendation and send you our price list.

After-Sales Service:

We use our best attitude to provide technical support and perfect after-service. You can send email or leave a message and we will give you timely response once we see it.

Free Gift Support:

According to your order quantity, we will give you some control cards as gifts.

Company Information

Company Introduction:

Zhengzhou Zhonghang Software Development Co., Ltd is located in Hi-tech District of Zhengzhou City. Our company is a Hi-tech enterprise which focuses on LED display control card system research and development, production, sale, and service.

Our senior research and development team, professional management personnel, strong production ability, high quality products, excellent after-service make our company rapidly develop into the professional manufacturer and main supplier of LED display control system field. In the future, our company will insist on technical innovation, management improvement and product update, and try our best to provide the best service.
