Seamless HDMI VGA DVI Input Source Switch Full Color LED Video Processor for Sale

FOB Reference Price:Get Latest Price
US $140-166 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Zhonghang
Model Number:
Z600
Usage:
Indoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
2304*1152
Screen Dimension:
Customized
Brand name:
Zhonghang
Certificate:
CCC
Warranty:
3 Years
Life span:
100000hours
Brightness:
High Brightness
Five-channel HD signal input:
HDMI, DVI, VGA, 2*CVBS

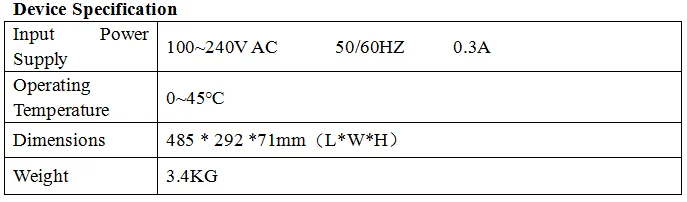

Input Power Supply:
100~240V AC 50/60HZ 0.3A
Dimensions:
485 *292 * 71mm(L*W*H)
Weight:
3.4kg
Output Port:
2*DVI
SupplyAbility
SupplyAbility:
3000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
PVC bag and carton box
Port
Shanghai
Lead Time :
After payment
Specification

Seamless HDMI VGA DVI Input Source Switch Full Color LED Video Processor for Sale

1. Support the maximum output resolution of 2304*1152, support user-defined.
2. Support five-channel HD signal input: HDMI, DVI, VGA, CVBS1, CVBS2.

3. Fade in/out effects, seamlessly switch between different input signals.

4. Support built-in 2 pieces sending cards.
5. Support key, knob, and remote control multi-mode adjustment.

6. Lossless zoom technique, fast switching video source.
7. Multifunctional remote telecontroller, support 500 meters distance.

Product Description

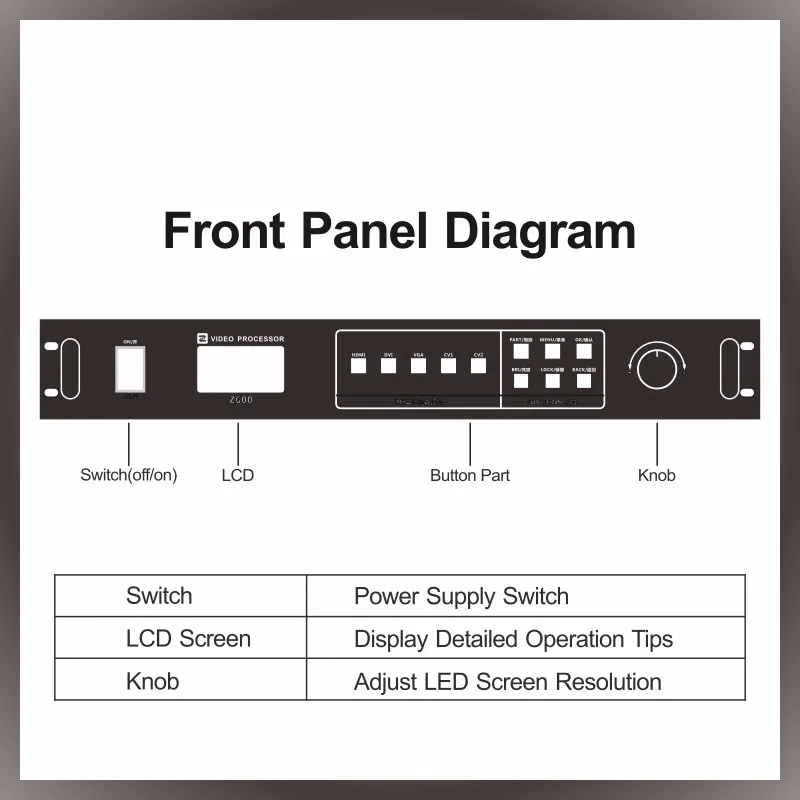

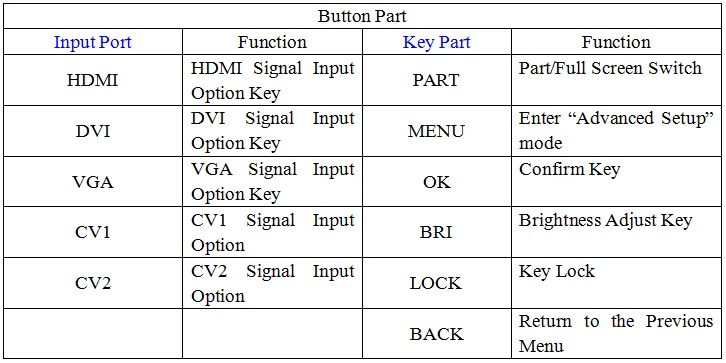

Front Panel Diagram

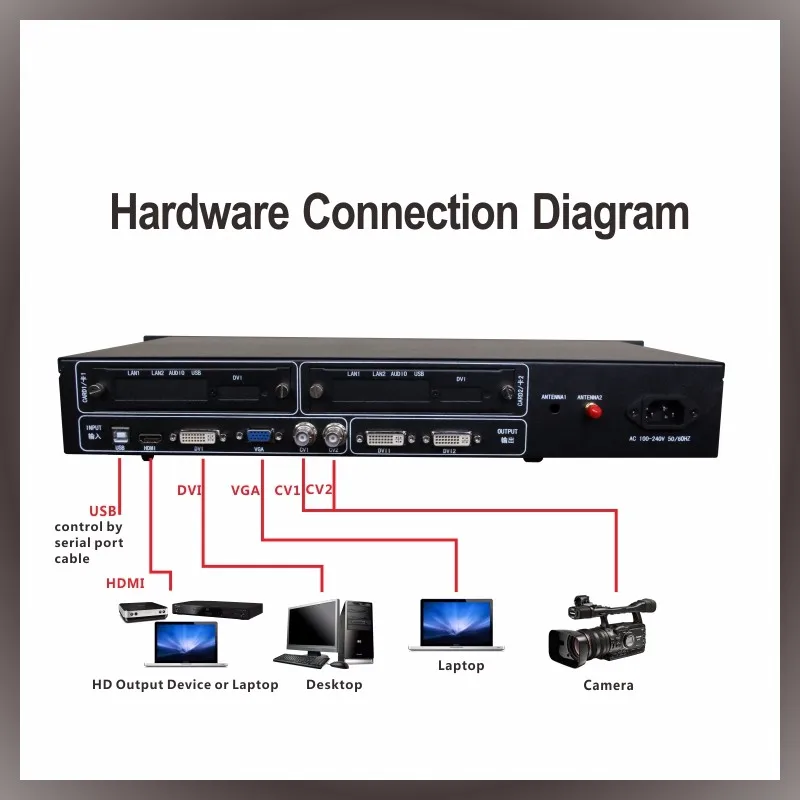

Back Panel Diagram

Display Effects

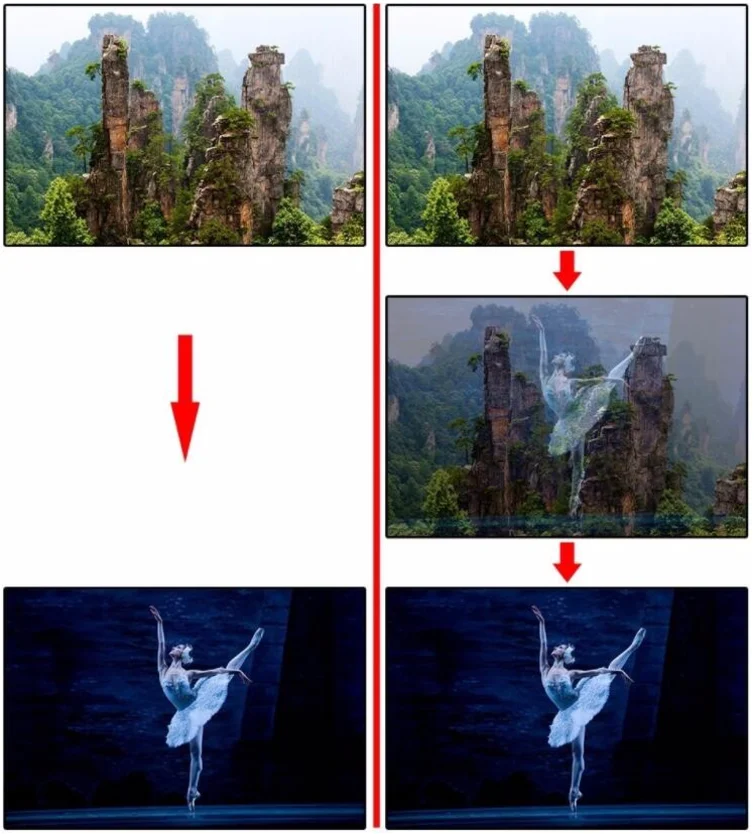

    1. Seamlessly Switch Between Different Input Signals

Instantly Cut effects                           Fade in/ out effects

2.  Full/ Part Screen Switch

3. Remote Telecontroller

Product Features

Smart·Simple·Practical

1. The Simplest Processor
Three levels of menu settings, which is easy for customers to operate .
2. Large Loading Area
2.6 million points loading area, the maximum output resolution is 2304*1152, the width can achieve 2560, and the height can achieve 1536. The default input resolution is 1920*1080, and support user-defined.
3.500m Multifunctional Telecontroller
(1)Multifunctional telecontroller, support 500 meters distance;
(2)One telecontroller can control many video processors (auto matching).

4.Any Part Display
Support screen capture at any area.
5.OSD Real-time Display
OSD real-time display, which can achieve remote adjust screen by telecontroller.
6.EDID Manager
(1)Support input resolution automatically adapt to the processor;
(2)Support HDMI/ DVI/ VGA input source independent settings.
7. Smart Lock
(1)Menu lock mode: Lock function button, and only the signal source switch button available.
(2)Full lock mode: Lock all keys.
8. Support fade in/out switch, and no black screen in instantly cutting.
(1)Support fade in/out switch effect, which can achieve smooth picture switch.
(2)No black screen in instantly cutting.
9. Smart Adjusting Knob
Smart adjusting knob, can quickly and accurately adjust to the desired resolution.
10.Fast Button Response
Fast response in signal source switch button, good interaction experience.
11.Part/Full Display Switching
It can achieve animation effect switching, a better visual experience.
12.Wide Voltage Input
Voltage input range: AC 100~240V, 50/60HZ

Our Company

Zhengzhou Zhonghang Software Development Co., Ltd is located in Hi-tech District of Zhengzhou City. Our company is a Hi-tech enterprise which focuses on LED display control card system research, development, production, sale, and service.


Our senior research and development team has professional management personnel, strong production ability, high quality products, excellent after-service. It makes our company rapidly develop into a professional manufacturer and main supplier in LED display control system field. In the future, our company will insist on technical innovation, management improvement and product update, and try our best to provide the best service.

FAQ

1. LCD doesn’t work?

A: Confirm the power wire is plugged tightly and the power supply is normal.

2. The display of LED screen lack of color?

A: Confirm the input/output signal terminal cables are plugged tightly, and tighten the screws.

3. The screen has black edges?

 A:(1). Adjust the output resolution larger than or equal to the LED screen physical pixel size.
     (2). Setup the computer resolution or EDID resolution to the maximum input resolution.
     (3). If the above operations don’t work, then enter the graphics card setup interface, adjust the extended display (PROCESSERDVI/ PROCESSERVGA) screen, zoom to full screen.

4. The VGA signal display is incomplete ?

A: (1).Main Menu-Advanced Setup-VGA Setup-Auto Adjust-OK. (if the adjustment is still incomplete, then repeat the automatic adjustment process.)
    (2).Manual adjust H Start/V Start/ Clock Size parameters.

5. Remote telecontroller doesn’t work?

A: Make sure the remote antenna is assembled in an open position.
Main Menu - Remote Setup:
(1). Restart the remote control switch.
(2). Enter the “Remote Match” interface, and press the “BRI” and “OK” keys at the same time in the remote telecontroller, then the interface will display a successful matching prompt.


6. Device connection debugging is complete, while appear the black screen?

A: (1). Confirm that the signal source button is selected correctly. (if the button indicator light is always on, then the signal is normal; if the button indicator light is flashing, then the signal is abnormal)
  (2). Confirm that the input source computer whether in hibernation mode.
  (3). Check the signal source if it is exist or not.
  (4). Switch to full screen mode, if normal, check whether the screen capture area is black area.
