Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: ZH
  • Model Number: P10
  • Usage: Outdoor
  • Tube Chip Color: Other
  • Display Function: animation graphics video
  • Pixels: 10mm
  • Screen Dimension: Customized
  • Name: ZH-5U1
  • Warranty: 2 Years
  • Product name: P10 Outdoor Led Display
  • Color: dual color
  • Brightness: High Brightness
  • Module size: 16*320
  • Certificate: CCC
  • LED chip: Cree + Nichia + Epistar + Opto + Silan
  • Application: Outdoor Advertising Led
  • Life span: 100000 Hours

Packaging & Delivery

Packaging Details Selling Units: Multiple of 39
Package size per batch: 22X22X13 cm
Gross weight per batch: 2.1 KG
Package Type: PVC bag and carton bag
Delivery Time One day
Product Description
1-line P10 U-disk LED Display Controller Support 16*320


Model Number : ZH-5U1


1. USB Communication Types.
2. Very Simple Software Operation Steps.
3. Super Stable Effect, Super Compatibility.
4. Support Temperature Sensor With High Precision.
Control Line
1-line
Control Area
16*320
Hub Port
1*hub 12
Communication
USB

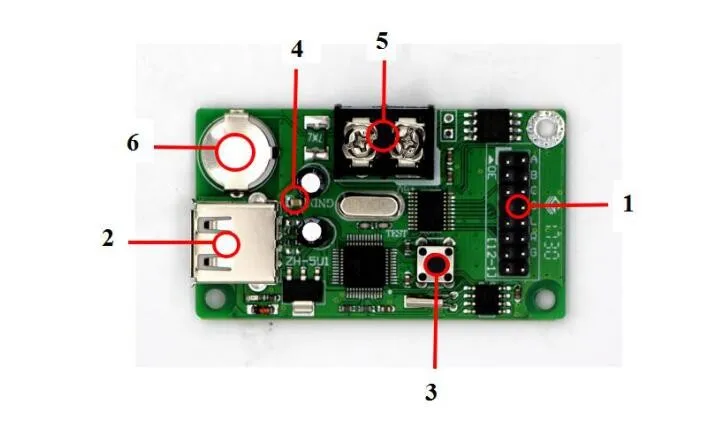

Specification
Item
Interface Name
Description
1
Hub Port
Connect hub board
2
USB Port
USB Port
3
Multi-function Button
1.Test LED panel   2.Reset to defaults
4
5V Power Indicator
Indicating power state
5
5V Power Port
Voltage range support 3.2V-5.5V
6
RTC Button Battery
RTC battery,Voltage 3V
PC Software
LED Control System V5.1.18
Pixel
16*320
Hub Port
1*hub 12
Communication Port
USB
Support Module Type
All kinds of single/dual color LED display modules
Software Function
Multi-language/Multi-program/Multi-partition
Program Number
65536 programs, 16 partitions for each program.
Play Type
Text, Graphic, Animation, Time, Clock, Timer, Temperature.
Running Side
Over 10 kinds of running sides, support single partition running side.
Clock Display
Digital clock, Analog clock, Positive timing, Negative timing.
Memory
1 MByte
Brightness Adjustment
15 levels brightness, automatically adjust by time.
Remote Switch
Support timing turn on/off, turn on/off by software.
Working Voltage
3.2V-5.5V
Max Power
≤0.5W
Working Temperature
-30℃~70℃
Secondary Development
Offer development protocol
Company Information


Zhengzhou Zhonghang Software Development Co.,Ltd.



1. Located in Hi-tech District of Zhengzhou City.
2. 8 years focuses on LED display control card system research and development, production, sale, and service.
3. Professional team, high quality products, excellent service make our company become the professional manufacturer and main supplier of LED display control system around the world.
Software download

USB series cards how to download the software?

(1). Download Website: www.zhonghangled.com/en.

(2). Software Name: LED Control System V5.1.1.8.

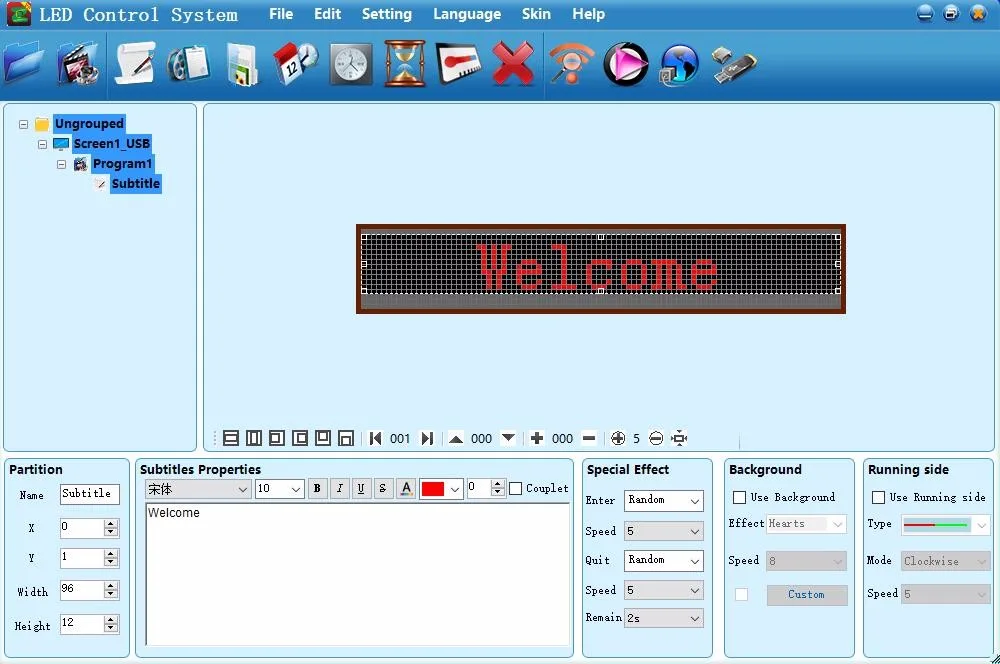

The PC software interface as follows:


USB Card Models
Certifications


Our products have won many certificates and are familiar around the world.Offer high quality products, competitive price, best service for our customers is our business philosophy.


Packaging & Shipping


Packaging Details: PVC bag and carton box


Delivery Time: After payment

A. By air, from factory to the most closed air port of destination.
B. By world wide express, always use DHL, UPS, TNT, Fedex, EMS, door to door service.
C. By ship, the slowest shipping, from factory to the most closed sea port of destination.
